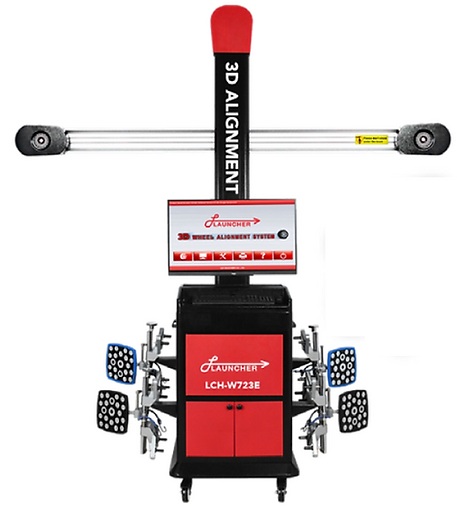

Enhanced 3D Wheel Aligner

The 3D Wheel Aligner features all-new three-dimension computer visual measurement - an adopted high-performance camera to automatically detect the alignment parameter. The equipment is pre-calibrated at production and thus does not need on-site calibration at installation.

LAUNCHER's 3D series wheel alignment system is for testing wheel parameters and providing references for manufacturer specs. By comparing the two sets of parameters, operators can adjust the vehicle wheel parameters to a reasonable range, ensure the vehicle wheels are in good condition, and avoid unreasonable wear and tear.

🍃 Now Supporting Hybrid & Electric Vehicles 🍃

  • Includes 1 set of exotic vehicle huggers

  • Bigger monitor, clearer distance view

  • Lighter beam for smoother mobility

  • Enhanced cabinet with bigger capacity

  • Developed smart cameras with reduced reflection

  • 4MP camera wider detection range for extended size vehicles

  • Works on all types of hoists including 2 post hoists

  • Dynamic constitute coordinate (DCC), non-horizontal test platform

  • Movable from Bay to Bay

  • One foot distance run out compensation.

  • Rolling distance for alignment run out compensation (20°-28°)

  • Adopted Smart Tracking Camera (STC)

  • Wheelbase, offset track and diagonal offset measurements

  • Includes 2 Years software updates

  • Time saving & fast-reading during rolling or caster swing

  • Calibrated at production, does not need on-site calibration at installation

  • No electric component or wiring on the target

  • Extended vehicle wheelbase testing

  • Extremely simplified test procedure.

  • Complete parameter measurement: Capable of test of front/ rear toe-in, front/rear camber, thrust angle, caster, SAl/Kingpin, wheelbase, track (thread) etc

  • Large OEM database: More than 20000 records of vehicle of all makes

  • Data history storage for client management

  • Supports Hybrid & Electric vehicles


LCH-W723E Assembly video

LCH-W723E Unboxing video
